Technical Specifications

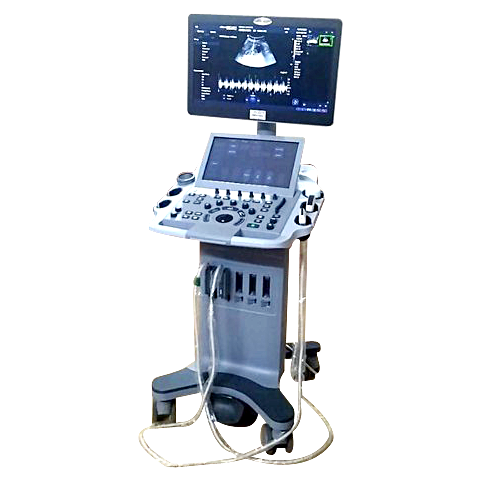

Display: 21.5” HD LCD medical monitor
Touchscreen: 14” touch screen with 20°adjustable tilt
Scanning Mode: Electronic Convex / Linear / Phased / Convex VolumeArray
Imaging Mode: B, Dual B, Quad B, THI, M mode, Colour Doppler, PDI/DPDI, PW Doppler, CW Doppler, TDI, HPRF, CW, Anatomic M mode, Dual-Live, Duplex and Triplex mode, Trapezoid Imaging.
Probe Connector: Five Active
Probe Frequency: Frequency range of 1-17MHz (depending on probe.)
Gain Control: Overall Gain Control, 8 step TGC
Hard Drive: 512 GB SSD
Image Depth: 1 to 45 cm
Advance Technology: eSRI, eView, eHI, eBeam, eTAI, eBoost, eOptimized - One key optimization, eTouch - Efficient ‘Swipe’,Auto IMT, PW Auto Trace, Prospective / Retrospective Clip, Digital Zoom, Full Screen Zoom, eNeedle, Anatomic M mode, TDI mode-Tissue Doppler Imaging, 3D/4D Imaging, eLearn Instruction software
Peripherals: S Video, USB 3.0, USB 2.0, HDMI, Ethernet
Optional Features: 3D/4D, eFACE, TDI, Anatomic M mode, in-Built battery, Gel Warmer, eNeedle for Needle Visualization, Digital gesture control.
Features
1. Trapezoid Imaging:
Use trapezoid image to enlarge the imaging area by 30% when performing a real time scan by using linear probes.
2. Needle Visualization
It positions the ultrasound beam perpendicular with the needle, in order to enhance the signal strength deflected off of the needle. It Displays the needle brighter and more clearly on the screen, to help biopsy diagnoses be more operable and precise.
3. TDI mode-Tissue Doppler Imaging
TDI can provide velocities and other clinical information on myocardial functions, facilitating clinical doctors to analyse and compare motions of different parts of a patient’s heart.
4. Anatomic M mode
This advanced cardiac technology features three cursors which can be set at any position and angle simultaneously. It offers the best approach to reducing the time-per-patient while maintaining diagnostic precision in addition to the standard cardiac features, acquiring all information even in hard-to-scan situations with difficult heart positioning.
5. Advanced ET Technology
CD ELITE provides efficient technology and a FOV of 200 degrees for scanning the Uterus with more precision and ease.
6. 3D/4D Imaging
e-Face is One key optimization of 3D image; it greatly increases the scanning efficiency and time
