Hand-held Oximeter from Bionet, Model: Oxy9Wave

Download Brochure

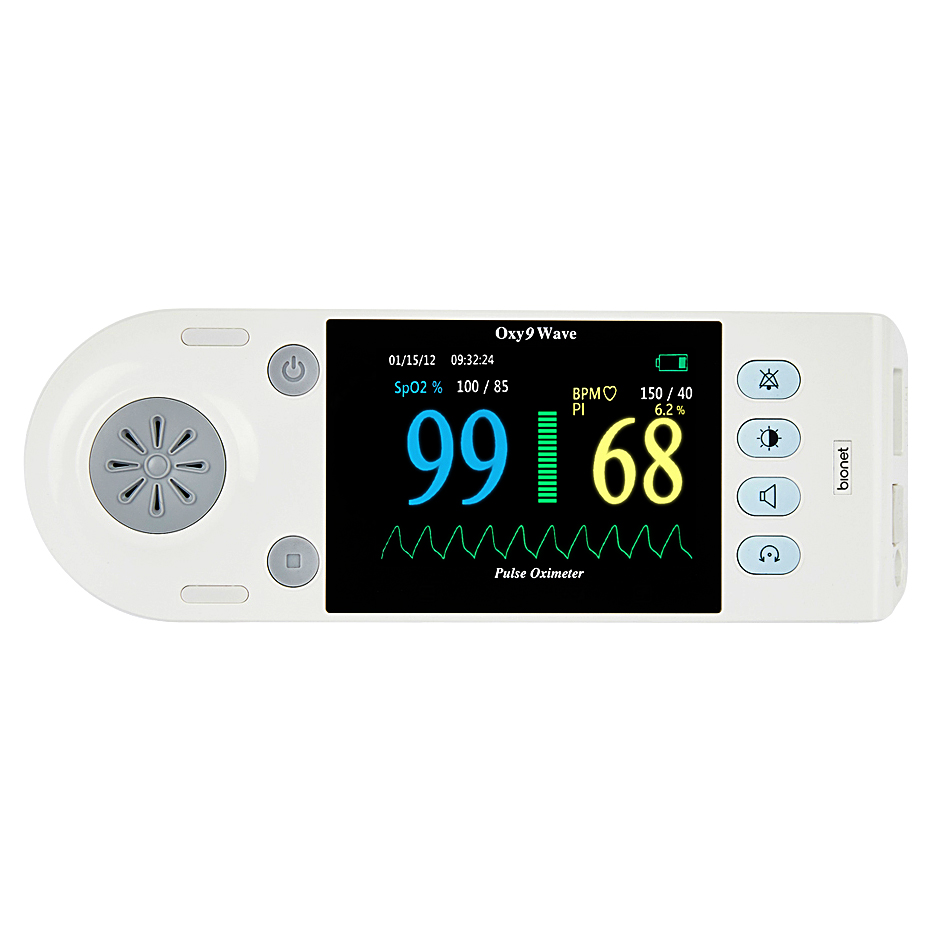

Hand-held Oximeter from Bionet, Model: Oxy9Wave

Specially suitable for Neonates

Availability: In stock
SKU: OXY9WAVE
Non Returnable

Features

Simple, Fast acquisition

  • 3.2″ Color LCD for clear view
  • Large memory : up to 30 days in 10 secs
  • Nellcor compatibility
  • Li-ion rechargeable battery allows cordless use for up to 15 hrs
  • Perfusion index indication

User-Convenience

  • Vertical & horizontal display of measurement value
  • Intuitive operation
  • SpO2, BPM, Pulse parameter display

Technical Specifications



Product Specifications Value
Dimensions 75 x 210 x 45 mm
Weight Approx. 0.3Kg
Power AC 100-240V (50/60Hz), Adapter 5V, 2.0 A
Power consumption 24VA (max)
Display 3.5” Color TFT-LCD screen
Resolution 320 X 480 pixels
Displayed Data SpO₂, Pulse rate, Perfusion index, Level Bar, Pulse rate Wave, Time and Date, Alarm Volume, Battery Status, Brightness
LED indicators Sensor Separation, Alarm Silence, Charging Status, Power Connection
Parameters SpO2, Pulse rate, PI (Perfusion Index)
Interfaces DC input connector : 5V, 2.0A
USB digital output for transferring data
Battery Rechargeable Li-ion battery (5,500mAh, 3.65V)
• Charging time: 6.5 hours
• Operating time: Up to 15 hours
Data Storage SpO2, Pulse rate (30 days at 10 second intervals)
Temperature Operation: 5 ~ +40 °C
Storage: –20 ~ +70 °C
Humidity Operation: 30% ~ 85%,
Storage: 5% ~ 95% (Package )
Altitude Operation: 525 ~ 795 mmHg (70 ~ 106 kPa)
Storage: 375 ~ 795 mmHg (50 ~ 106 kPa)
Saturation range 40 to 100%
Saturation accuracy 70 to 100% ±2 digits
0 to 69% unspecified
Pulse rate range 30 to 250 bpm
Pulse rate accuracy ±2 bpm
