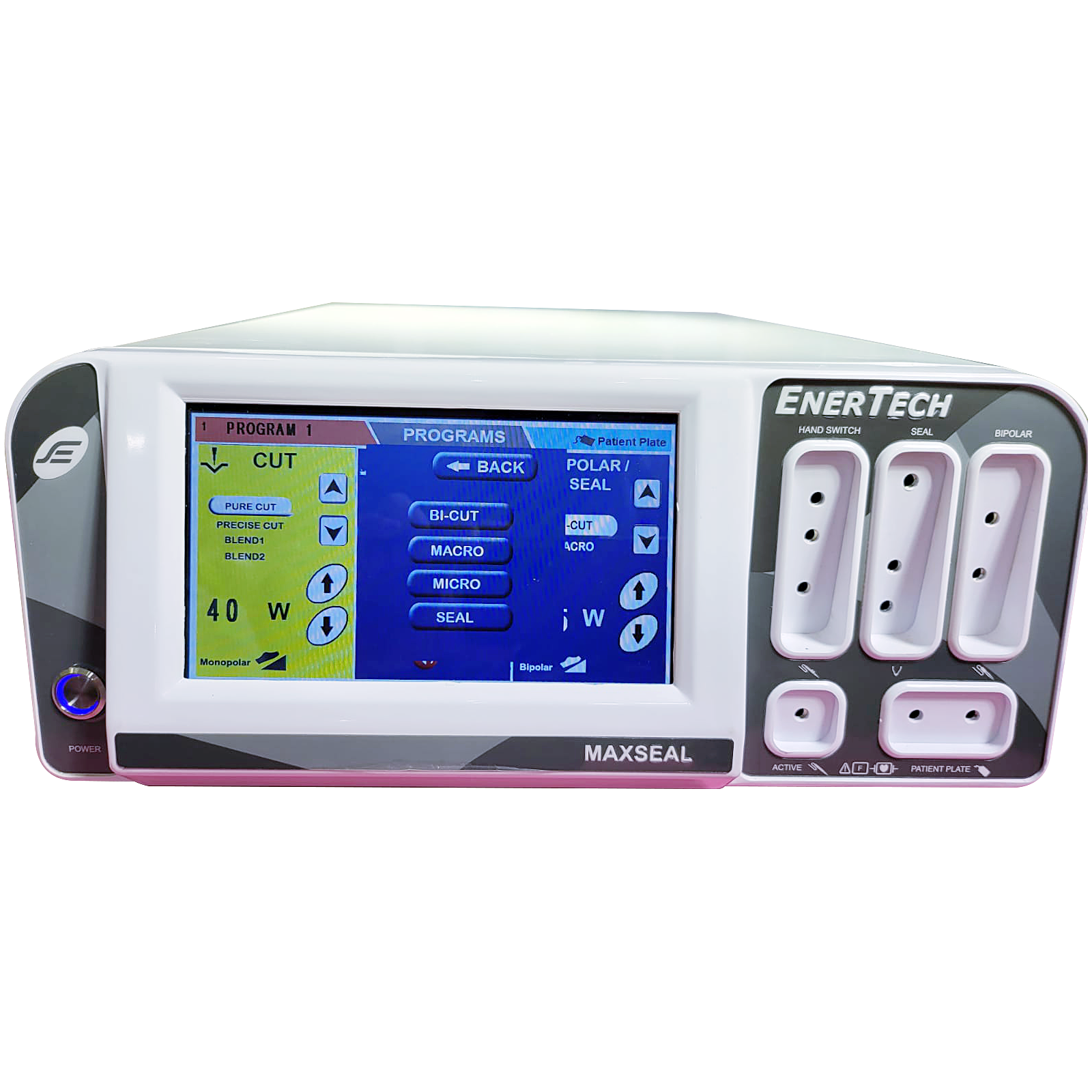

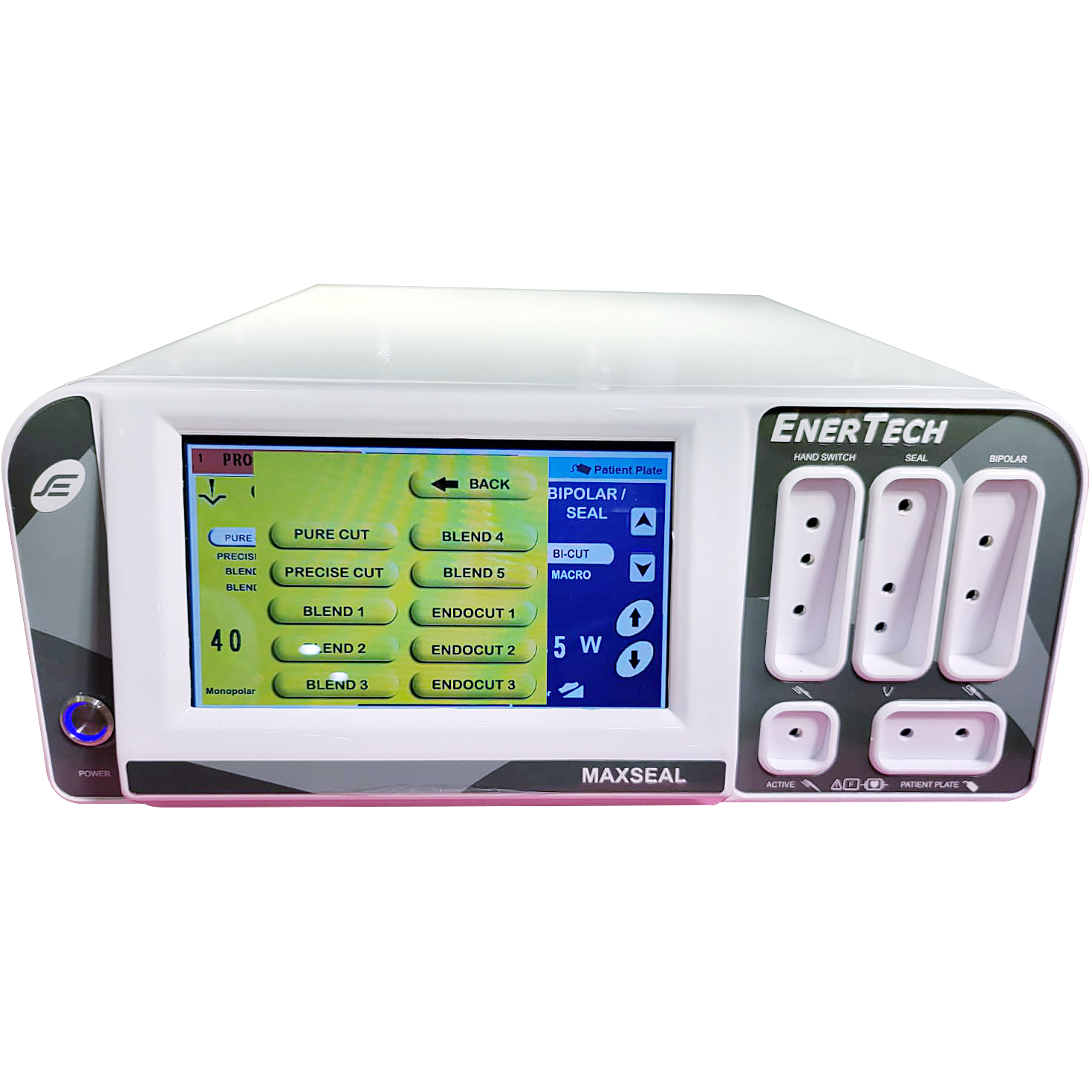

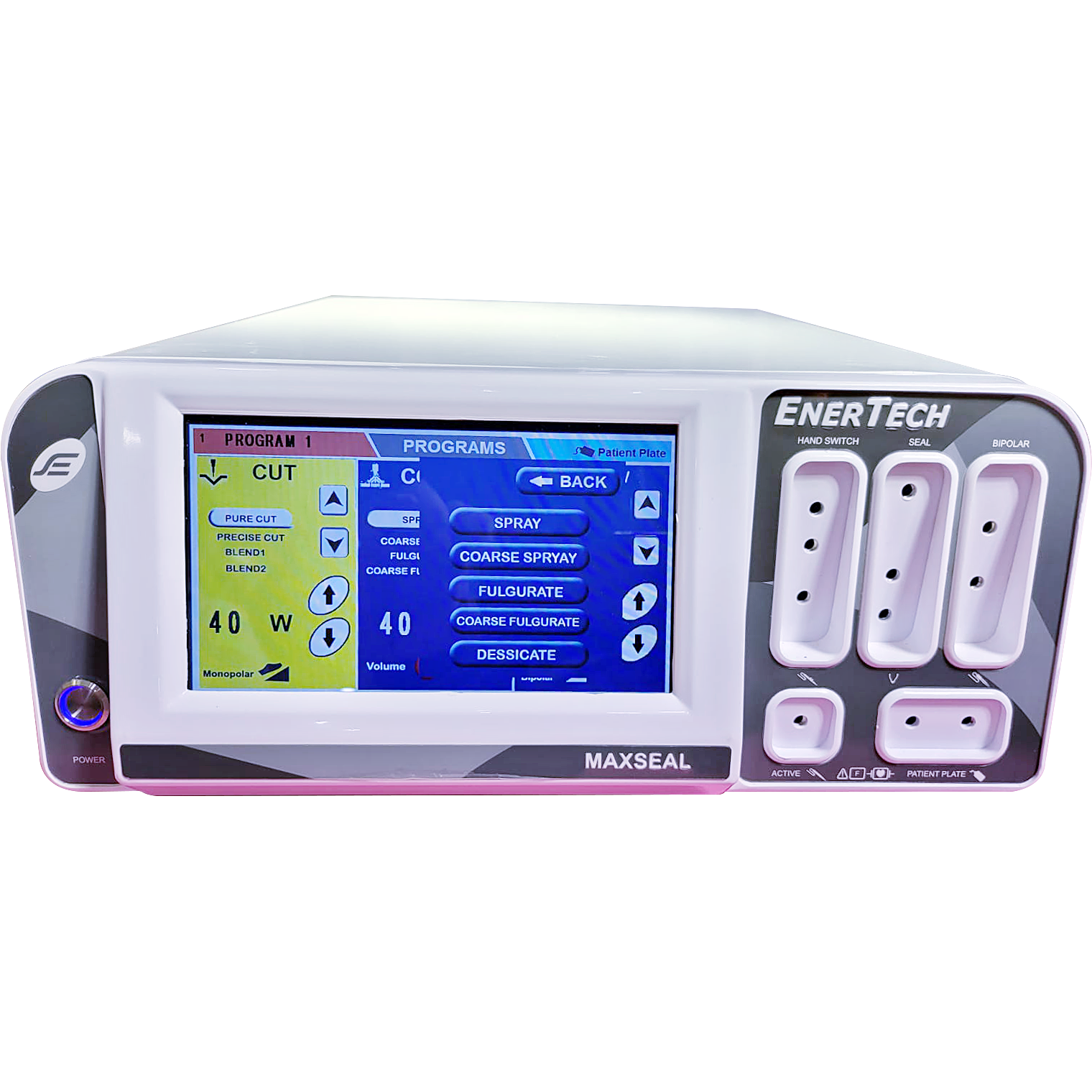

Vessel sealer with Surgical Diathermy Model: MAXSEAL from Enertech An ISO 13485, CE Certified product

Download Brochure

Vessel sealer with Surgical Diathermy Model: MAXSEAL from Enertech An ISO 13485, CE Certified product

Touch Screen Operation. · Patient Plate conductivity monitoring system (PP-CMS.). · Accessories contact detection during Plug-in and operation. · Multiple Modes-1 pure cut, 1 precise cut, 5 blend, 3 Endo Cut, 2 Spray, · 2 Fulgurate, 1 Dessicate. · 1 Bi-Cut, 2 Bi-Coag and 1 Seal Mode. · 100 programs memory.

Availability: In stock
SKU: MAX-SEAL
Non Returnable

Product Video


Quick Reference

·

  • Touch Screen Operation.
  • Patient Plate conductivity monitoring system (PP-CMS.).
  • Accessories contact detection during Plug-in and operation.
  • Multiple Modes-1 pure cut, 1 precise cut, 5 blend, 3 Endo Cut, 2 Spray,
  • 2 Fulgurate, 1 Dessicate.
  • 1 Bi-Cut, 2 Bi-Coag and 1 Seal Mode.
  • 100 programs memory.



Technical Specification

100 Programs Memory Interface

:

Touch screen.

 Dimension ( W x H x D )

:

300 mm x 150 mm x 340 mm.

 Weight

:

5.5 kg.

 Input Supply Voltage

:

230 VAC + 15%@ 50/60Hz (110 V optional).



Monopolar Modes

Mode

Maxx. Power Watt

Rated Load (Ohms)

Program

Operating Frequency

Pure Cut

400 W

500

100

480 khz

Precise Cut

300 W

500

100

480 khz

Blend 1

250 W

500

100

480 khz

Blend 2

225 W

500

100

480 khz

Blend 3

200 W

500

100

480 khz

Blend 4

175 W

500

100

480 khz

Blend 5

150 W

500

100

480 khz

Endo Cut 1

150 W

500

100

480 khz

Endo Cut 2

100 W

500

100

480 khz

Endo Cut 3

75 W

500

100

480 khz



Mode

Maxx. Power Watt

Rated Load (Ohms)

Program

Operating Frequency

Coarse Spray

120 W

500

100

480 khz

Fine Spray

100 W

500

100

480 khz

Coarse Fulgurate

150 W

500

100

480 khz

Fine Fulgurate

150 W

500

100

480 khz

Dessicate

150 W

500

100

480 khz



Bipolar Modes

Mode

Maxx. Power Watt

Rated Load (Ohms)

Program

Operating Frequency

Bi - Cut

120 W

500

100

480 khz

Macro

120 W

500

100

480 khz

Micro

80 W

500

100

480 khz



Sealer Modes

Mode

Maxx. Power Watt

Max Power Circuit Current

Peak to Peak Voltage

Operating Frequency

Crest Factor

Seal

150 W

4.4 Amps

700 (350)

480 khz

1.5
