Semi Electric C-Arm OT Table from Lumens Medical, Model: LM-OT1S

Download Brochure

Semi Electric C-Arm OT Table from Lumens Medical, Model: LM-OT1S

for Orthopedic, Gynaec & General Surgeries

Availability: In stock
SKU: LM-OT1S
Non Returnable

Features

·         Manual Mechanism for functioning and controlling the table.

·         Centric base made from high quality stainless steel.

·         LEG and HEAD SECTION are detachable and interchangeable.

·         Inbuilt Kidney Bridge.

·         Base and cover made of attractive, east to clean stainless steel.

·         Sophisticated mechanism provides smooth, step less  articulation of the table top for precise patient positioning.

Technical Specifications

·         Top Dimension: L 1900mm x W 520mm

·         Electric Height Adjustment: 762mm -1000 mm

·         Trendelenburg / Reverse: 30° / 25°

·         Lateral Tilt: 20° / 20°

·         Kidney Elevator: 130mm

·         Power Supply: 24V DC

·         Back Rest (up / down): 80° / 25°

·         Leg Rest (up / down): 10° / 90°

·         Head Rest (up / down): 45° / 90°

·         Battery Backup: 2-3 Hours (optional)

·         Mains Voltage Capacity: AC 220V±10%50Hz

·         Patient Weight Capacity: 200 Kgs

Related Products

  • OT table Electric cum Manual for Neuro, Ortho, general, gynaec etc surgeries Model: Astra 103 plus with a weight bearing Capacity of 300Kg for Bariatric patients

    + Details

  • OT table Electric cum Manual for Neuro ,Ortho, general, gynaec etc surgeries Model: Astra 101

    + Details

  • Electric Operated C arm Compatible OT table Model: MI-101

    + Details

  • OT Table for IVF centers , Gynaecology Obstetric , Model: CELEBRITA Electric with Manual over riding version.

    + Details

  • Hydraulic Operation Table. C Arm compatible C Arm compatible OT Table Model: MI 111

    + Details

  • Hydraulic Operation Table - General. from Meditech IHydraullic OT Table for Gynaec and General Surgery Model: MI 2003

    + Details

  • Telescopic Labour Table from Meditech India. Model: MI An ISO 9001, ISO 13485, CE Certified product

    + Details

  • Electric C Arm Compatible OT Table from Meditech Model : Max 70 (Ortho attachments optional)

    + Details

  • Manual Hydraulic OT Table from Meditech India Model : Max 20

    + Details

  • C-ARM Compatible Manual Hydraulic OT Table from Meditech Model : MAX 50 ALSO AVAILABLE AS SEMI-ELECTRIC Version,Where only Hi-Lo can be achieved Electrically with remote.Ortho attachments Optional.

    + Details

  • Electric Examination Table

    + Details

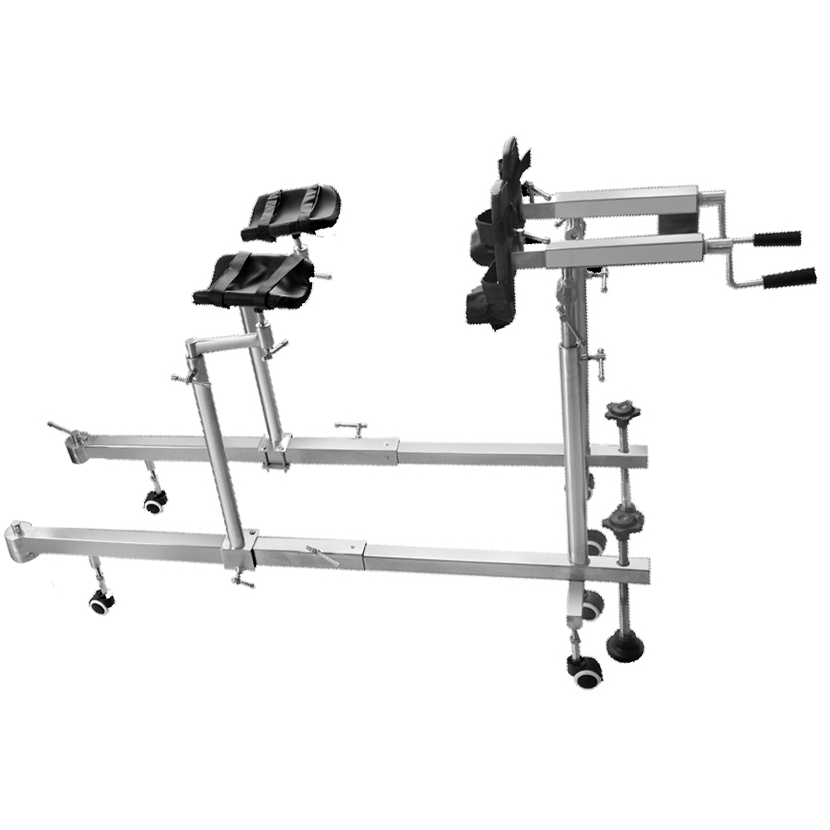

  • Ortho Attachments
