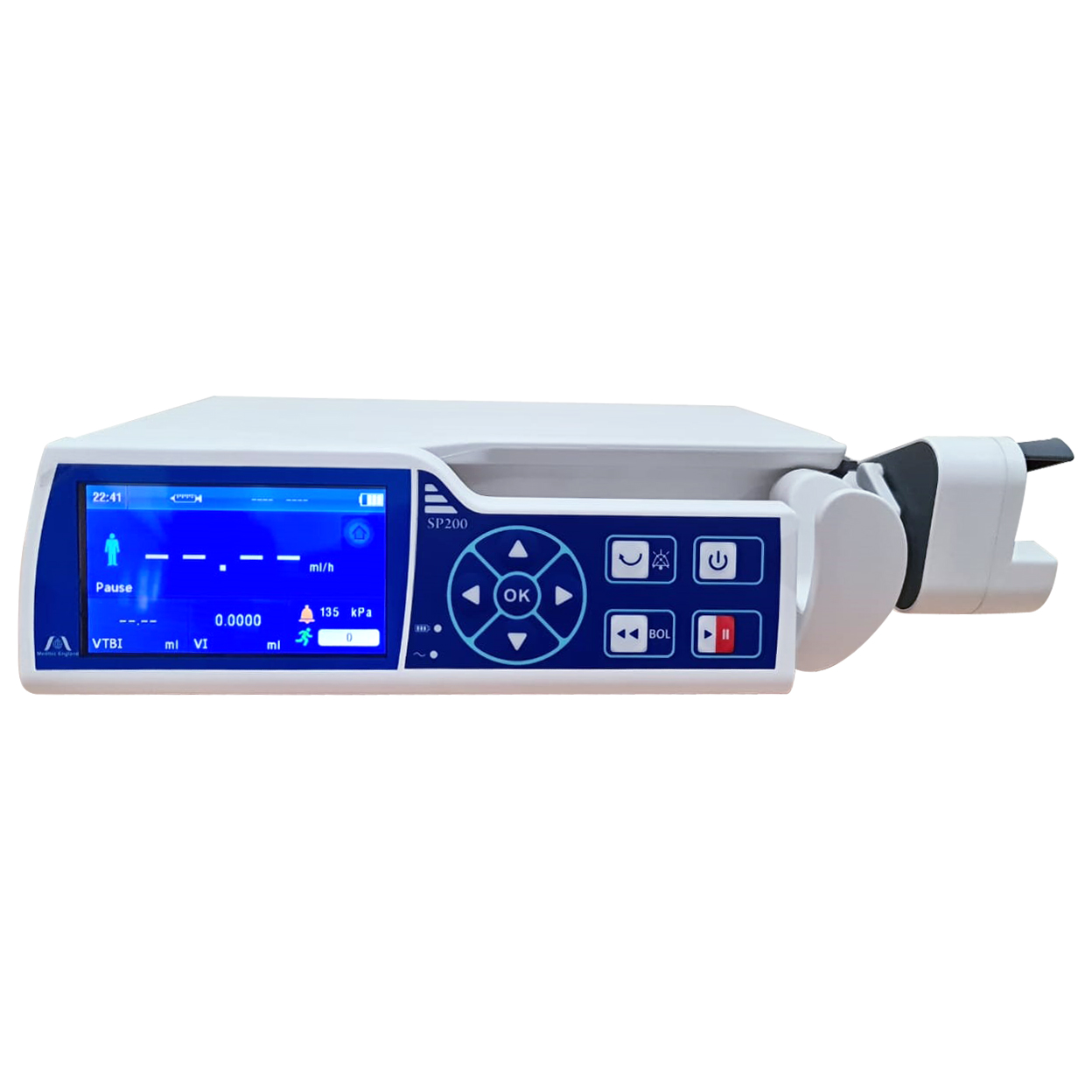

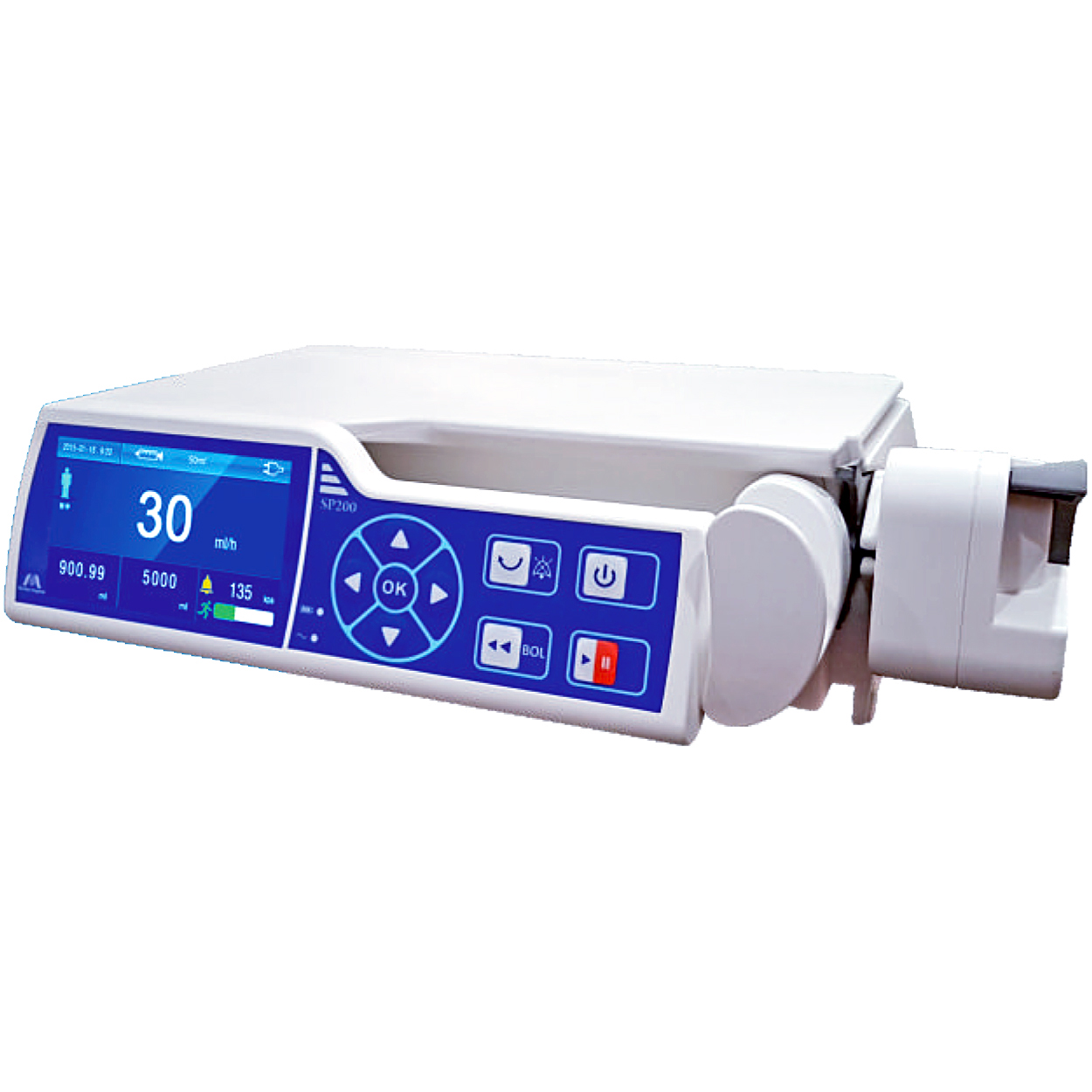

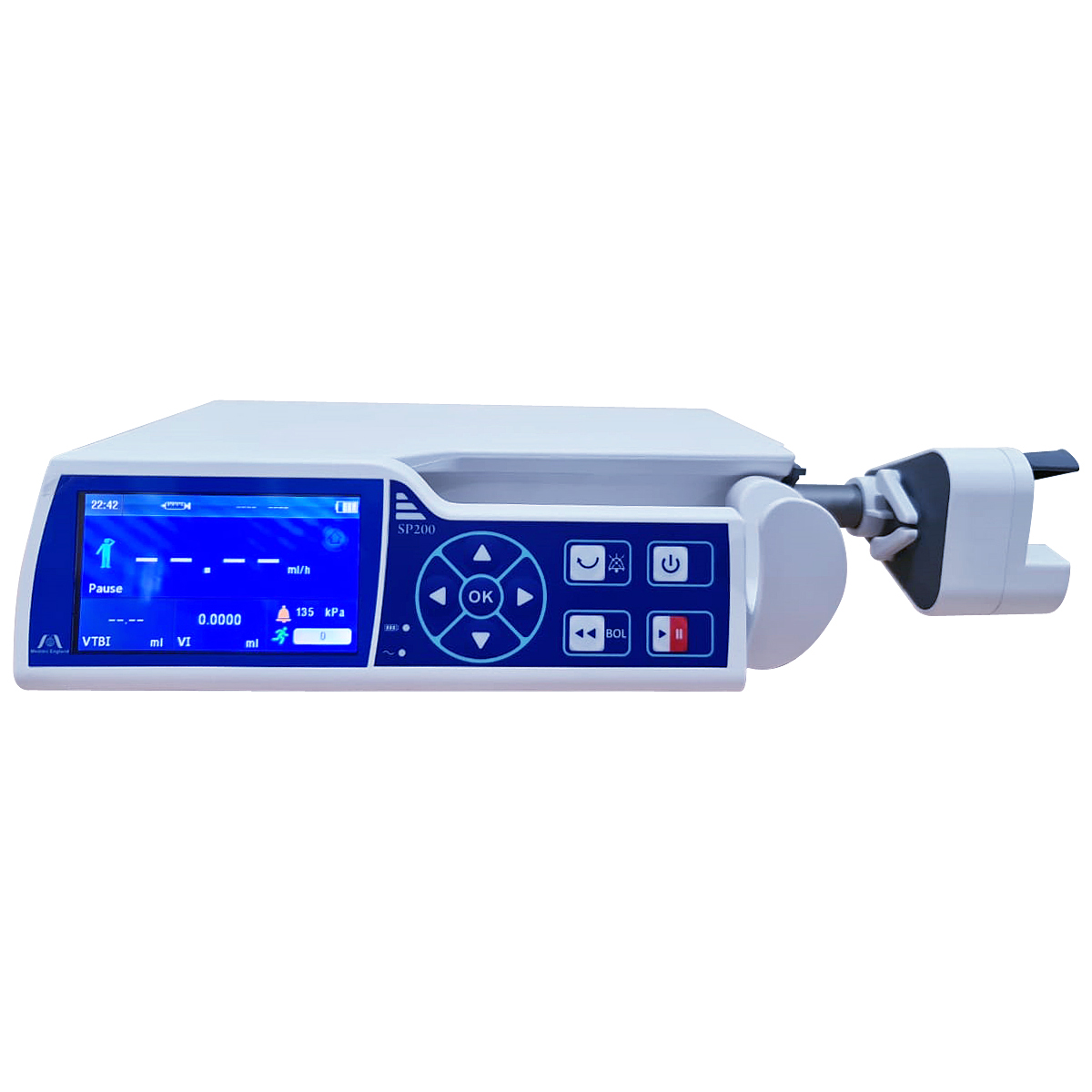

Syringe Pump Modular version from Meditec England. Model SP200

Syringe Pump Modular version from Meditec England. Model SP200
Available for sale in Telangana only

Meditec England SP200 syringe pump has been designed to combine high level of safety and performance with simple & reliable operation. SP200 offers comprehensive range of features making it ideal for general, critical care & neonatal infusion where accuracy is important.

Availability: In stock
SKU: SYRP-ME-SP200
Non Returnable

Features

·         3.5 inches TFT monochrome/Color (Optional) touch screen, resolution:128*64 / 480*272 (Optional), with 5/9 (Optional) adjustable brightness levels

·         Syringe Modes : Rate Mode, Volume-Time, Dose Rate. Optional- Loading Dose, Trapezia, Sequence and Intermittent Mode. Others - Relay Mode (Optional)

·         SP200 syringe pump has fast start functions, which can eliminate error caused by starting delay

·         Dual CPU design assures the safety of system

·         Syringes Auto size detection of 5/6ml, 10ml, 20ml, 30ml, 50/60ml syringes

·         Syringe Management 4 Preset IV brands, 6 new brands can be added, brand name editable (Optional)

·         VTBI Range 0.10–9999.99 ml

·         Manual (Std.) & Automatic (Optional)

·         Occlusion Pressure 5 adjustable setting, 5 ~ 145kPa / 11 adjustable setting, 10~135 kPa (Optional)

·         Drug Library Up to 100 from specified drug category

·         Battery Life: Rechargeable lithium-ion battery 10-15V/2.5A

·         Battery Life: ≥6 hours at 5 ml/h / ≥8 hours at 5 ml/h (Optional)

Technical Specifications

·         Screen: 3.5 inches TFT monochrome/Color (Optional) touch screen, resolution:128*64 / 480*272 (Optional),with 5/9 (Optional) adjustable brightness levels

·         Keypad: 9 Function keys with navigation

·         Stack-able: Yes (Multiples of 3) Docking Station for power only (Meditec IC20) – Optional Docking Station for Central Monitoring (Meditec IC20) - Optional

·         Syringe Modes: Rate Mode, Volume-Time, Dose Rate Optional- Loading Dose, Trapezia, Sequence and Intermittent Mode Others - Relay Mode (Optional)

·         Syringes: Auto size detection of 5/6ml, 10ml, 20ml, 30ml, 50/60ml syringes

·         Syringe Management: 4 Preset IV brands, 6 new brands can be added, brand name editable (Optional)

·         Flow Rate Deviation: ≤ ± 2% ( ± .0.5% on mechanism deviation)

·         Flow Rate Range: 5/6ml syringe: 0.10–150.0ml/h; 10ml syringe: 0.10–300.0ml/h; 20ml syringe: 0.10–600.0ml/h; 30ml syringe: 0.10–800.0ml/h; 50/60ml syringe: 0.10–1500.0ml/h

·         Flow Rate Increment: 0.01ml/h for 0.10ml/h–99.99ml/h; 0.1ml/h for 100.0ml/h–999.9ml/h; 1ml/h for 1000ml/h–1500ml/h; VTBI Range 0.10–9999.99ml

·         VTBI Increment: 0.01ml for 0.10ml/h–99.99ml/h; 0.1ml for 100.0ml/h–999.9ml/h; 1ml for 1000ml/h–9999ml/h

·         VTBI Time Range: 0:00:01–99:59:59 (hh:mm:ss)

·         Bolus: Manual (Std.) & Automatic (Optional)

·         Bolus rate: 5/6ml syringe: 0.10 – 150.0ml/h;  10ml syringe: 0.10 – 300.0ml/h;  20ml syringe: 0.10 – 600.0ml/h;  30ml syringe: 0.10 – 800.0ml/h;  50/60ml syringe: 0.10 – 1500ml/h

·         Auto Bolus VTBI: 0.1–5ml, at 0.1ml increment

·         KVO Rate: 0.1–5ml, at 0.1ml increment

·         Occlusion Pressure: 5 adjustable setting, 5 ~ 145kPa / 11 adjustable setting, 10~135 kPa (Optional)

·         Dynamic Pressure Surveillance: DPS, yes.

·         Auto calibration: Yes

·         Audio & Visual Alarms: AC Power Interruption, DC Power Interruption, Low Battery, Depleted Battery, Forget Reminder, Infusion Near End, Infusion Complete, Injector Empty, Flow Rate, Syringe Unlocked, System Exception

·         Drug Library: Up to 100 from specified drug category Optional - Programmable with DERS (Drug Error Revise System)

·         Event Log: 2000 logs

·         Parameters Adjustable: YES (during infusion)

·         Anti-Bolus Function: YES, release 70% pressure of the peak value

·         Key Lock: Yes

·         Night Mode: Programmable and auto shift (Optional)

·         Alarm: 3 alarm grades, 5/ 9 (Optional) adjustable sound volume settings

·         Data Port: P1 connector (Optional)

·         Dual CPUs: Yes

·         Waterproof: IPX3

·         Classification: Class I, CF

·         Power: AC: 100V–240V, 50Hz/60Hz, 35VA

·         Battery: Rechargeable lithium-ion battery 10-15V/2.5A;  Battery Life:≥8 hours at 5ml/h

·         Charging Time: ≤4 hours

·         Dimensions & Net Wt.: 280mm x 170mm x 80mm; 1.8kg

·         Packing & Gross Wt.: 414mm x 238mm x 154mm; 2.8kg
