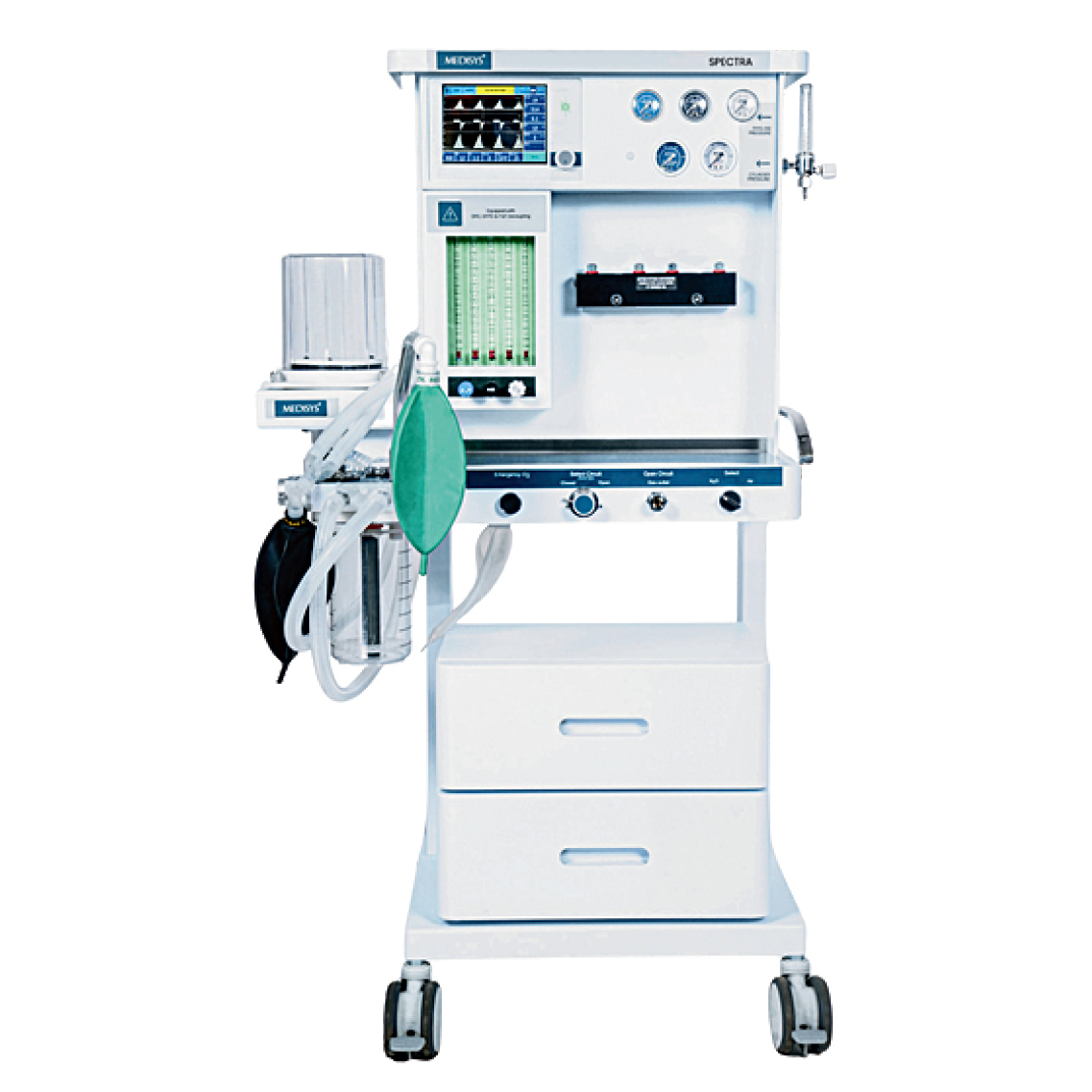

Made with High precession components from Sweden , with Volume and pressure modes.Suitable for Adult to Neonates.With Advanced ventilation modes VCV,PCV,SIMV-V, SIMV-P,PSV.With Monitored parameters on a 10 inch colour screen like P Peak,P Mean,PEEP,Pplatu,MV,MV-Spont,MV-Cont,TVi,TVe,Freq,Freq-spont,Freq-Cont,Fio2, Peak flow,Ti,Te,I:E,Resistance & compliance,Gas pressure.Wave forms : P-T , F-T, V-T, Loops:P-V , F-V.Alarms recall, Review.
FEATURES:
· Three Gas Anaesthesia Machine with provision for O2, N2O & Air
· Main Driving gas can be air, hence reduce running cost of oxygen
· Smart Gas Shift Technology: In case main Air gas fails, auto shift to secondary gas O2
· Five Tube flow meter assembly with Anti Hypoxia Guard with N2O shut off in case O2 fail
· Advance ventilator with full range of modes VCV, PCV, SIMV, PSV, Manual, Standby
· 10.1 Inch Color Touch screen for display waveforms (PT, FT, VT ) & Loops (PV, FV)
· Advanced proportional valve technology with tidal Volume compensation & precise flow
· Control to ensure accurate ventilation delivery from 20ml-2000ml
· Lithium Ion Battery backup 3 hours
· Electronic PEEP & Fio2 Monitoring
· Switchable Auxiliary Common gas outlet ACGO)
· Emergency oxygen flush flow between 35 to 70 LMP
· Twin Selectatec type vaporizers manifold with interlock system
· Inbuilt Pin Index Yokes for O2 & N2O
· Inbuilt Dual Drawers with big storage space
· Integrated circle observer (1.5 L) with APL Valve and manual/Vent switch
VENTILATOR PARAMETERS
· Driven mode: Pneumatically driven electronically control
· Touch Screen + Rotary knob + Key pad for simple operation
· Patient Type: Adult & Paediatric
· Tidal Volume (VT): 20ml~1500ml
· Display Size: 9 Inch colour Touch screen
· Ventilation mode: VCV, PCV, SIMV-V, SIMV-P, PSV STANDBY, Manual/Spontaneous, ACGO
· Pressure Control: 5~100cmH2O
· Pressure support: 5~60cmH2O
· Electronic PEEP: OFF, 3~40 cmH2O
· Trigger: Flow and Pressure trigger Frequency (f): 0~100 bpm,
· Frequency SIMV: 4~60 bpm
· I: E ratio: 10:1~1:10
· Inspiratory time: 0.5~ 5S, Inspiratory pause: 0~50%
· Case START/ STOP key with timer
MONITORED PARAMETERS
· Parameters: Ppeak, Pmean, PEEP, Pplatu, MV, MV_spont, MV_ cont, TVi, TVe, Freq, Freq_spont, Freq_cont, Fio2,Peak Flow, Ti, Te, I:E, Resistance & Compliance , Gas Pressure, Etco2 (optional)
· Waveforms: P-T, F-T,V-T & CO2-T (Optional)
· Loops: P-V, F-V
· Alarm Recall & Review
VAPORIZERALARMS
3 levels audio visible alarm Volume: Vte high/ low, MV high/low Pressure: Ppeak high/low, PEEP high/low, Gas Pressure fail Frequency high/low, Fio2 high/low, Apnea time, alarm mute, Power: AC Power fail, Low Battery
VAPORIZER
Dual Position Mounting: Tool-free installation Selectatec compatible with interlock. Agent type: Halothane, Isoflurane, Sevoflorane, Filling type: Pour-fill, Easy-fill and Quick-fill.
PNEUMATIC SPECIFICATION
Operational Modes: Closed & Semi Closed circuit system O2/ N2O /Air Pipeline Gas Supply: 0.23Mpa~0.6MPa O2, N2O Cylinder Gas Supply: Pin indexed yokes Pressure gauge: 3 nos. for pipeline, 2 nos. for cylinder Flow Meter: Cascade Flow Meter for O2, N2O & Single for Air Oxygen: Low Flow - 0.1~1.0 lpm & High Flow - 1~10 lpm N2O: Low Flow - 0.1~1.0 lpm & High Flow - 1~10 lpm Air: 0~10 lpm
Hypoxic guard system: Mechanical type provides minimum 25% concentration of O2 in O2/N2O mixture. Method : Proportionate reduce N2O with reduction in O2 flow O2 gas supply failure alarm: O2 pressure ≤ 0.23MPa N2O cut off: N2O cut off with O2 gas supply pressure fail O2 flush: 35~75L/min
Switchable ACGO: ISO 22 mm OD and 15 mm ID CO2 absorbent: Quick release type with volume 1.5L. Highly integrated design reduces leaks and misconnects Bag/Vent switch: switch for manual and mechanical ventilation. Integrated Adjustable Pressure Limiting (APL) valve: ≤ 6KPa
GENERAL
· Dimension: 1400 X 800 X 650 mm (HXWXD)
· Drawer Size Internal: 400 X 410X 170 mm (LXWXD)
· Casters: 4 inch diameter, with Front Locking brakes at front
· DIN rail at both side of machine allow for flexibility and ease of mounting patient monitor
· Power Supply: AC100~240±10%, 50/60 Hz, 1A, 100VA
· Battery: 9.6V /3.2AH Lithium Ion Phosphate backup > 3 hours
· Communication: USB & VGA
· Weight: 90Kg
SAFETY STANDARD
· Basic: In accordance with IEC 60601-1, 2 & EMC 60601-2
· Unit Type: Class, Type B, IPX0
· Working Environment: Temperature: 10-40 C,
· RH: 10-90% non condensing
